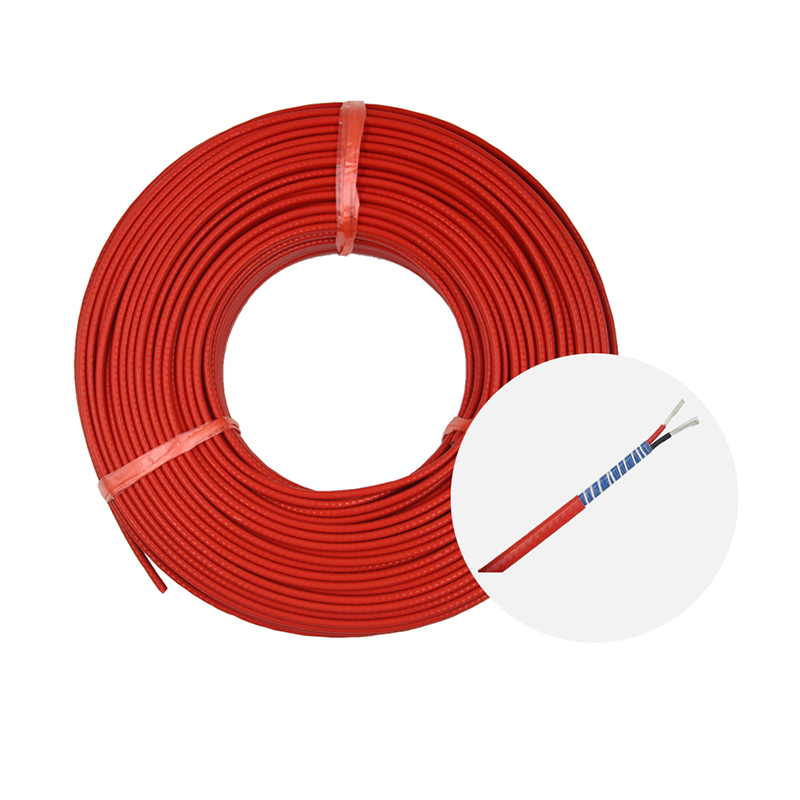

RDP2-J3

  • xingyuan
Availability:

Structure

1. Conductor: Tin-Plated Copper Wire

2. PFA Power Insulation Layer

3. PFA inner jacket insulation layer

4. Nickel-chromium alloy heating element

5. Outer Sheath Insulation Layer

6. Fiber Glass Braided Layer

7. Extra PFA protector

8. Can be cut at random length within a certain range

Product Description

ModelRated W/MMax.Using LengthMaximum Holding Temperature ℃Maximum Temperature Resistance ℃
RDP2(Q)-J3-101021065205
RDP2(Q)-J3-202018090205
RDP2(Q)-J3-3030150120205
RDP2(Q)-J3-4040130150205
Other sizes are also available to be tailored.
Note: The maximum holding temperature refers to the maximum temperature needed to maintain the liquid in the pipes to flow.

Application

Can be used in Explosion-proof occasions, level Ⅰ,Ⅱ.
