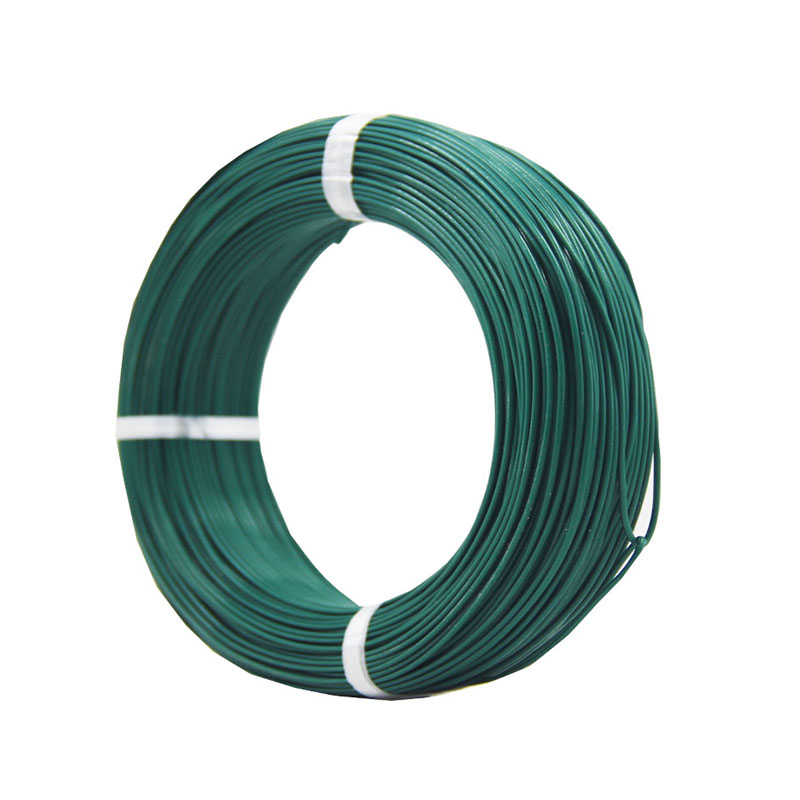

FF46-1
xingyuan
FEP TEFLON
Tinned Copper ( FF46-1)
-65℃～+150℃/+200℃
600V
±0.1mm
GJB773A/11A-2000
Red-Black-Yellow-Green-Blue-White-Purple-Brown-Orange-Gray-transpanrent
Field of Application
Products with excellent fire resistance,non flammable and acid,alkali,corrosion resistance,oil resistance and strong,waterproof and moisture,Suitable for AC 600v in the folling high temperature environment,such as instrumentation,aerospace,power metallurgy,petroleum,chemical,shipbuilding,vehicles,food machinery,household appliance,backing room,etc.
Product Description
| Nominal section mm2 | Conductor Structure NO./Ømm | Insulation Thickness mm | Finshed Wire Outer Diamemter Ø mm | Conductor DC RESISTANCE 200c ≦ Ω/km | Finished Wire Weight ≧kg/km | ||
| Tinnest | Thickest | F46-1 | F46-2 | ||||
| 0.05 | 7/0.10 | 0.2 | 0.25 | 0.70±0.05 | 347 | 339 | 1.1 |
| 0.08 | 7/0.12 | 0.2 | 0.25 | 0.76±0.05 | 236 | 227 | 1.4 |
| 0.12 | 7/0.15 | 0.2 | 0.25 | 0.95±0.05 | 154.5 | 145 | 2.2 |
| 0.2 | 7/0.20 | 0.22 | 0.27 | 1.10±0.05 | 86.6 | 81.8 | 3.1 |
| 0.3 | 7/0.23 | 0.22 | 0.28 | 1.20±0.05 | 90.4 | 83.5 | 4 |
| 0.35 | 19/0.16 | 0.23 | 0.3 | 1.30±0.05 | 56.8 | 53.6 | 4.7 |
| 0.5 | 19/0.18 | 0.23 | 0.3 | 1.40±0.05 | 39.85 | 37.2 | 5.8 |
| 0.75 | 19/0.23 | 0.23 | 0.3 | 1.60±0.05 | 24.6 | 22.7 | 8.7 |
| 1 | 19/0.26 | 0.23 | 0.3 | 1.80±0.05 | 20.4 | 19 | 11 |
| 1.2 | 19/0.28 | 0.25 | 0.37 | 2.0±0.08 | 16.6 | 15.3 | 12.7 |
| 1.5 | 19/0.32 | 0.25 | 0.37 | 2.15±0.08 | 12.7 | 11.7 | 16 |
| 2 | 19/0.37 | 0.25 | 0.37 | 2.45±0.08 | 10 | 9.45 | 21.3 |
| 2.5 | 37/0.30 49/0.26 | 0.28 | 0.38 | 3.53±0.10 2.85±0.10 | 7.13 7.43 | 6.90 6.86 | 26.3 27 |
| 3 | 37/0.32 49/0.28 | 0.28 | 0.38 | 3.2±0.25 3.0±0.10 | 7.33 6.63 | 6.92 6.23 | 31.5 |
| 4 | 37/0.37 49/0.32 | 0.35 | 0.45 | 3.60±0.25 3.60±0.10 | 6.35 4.88 | 5.98 4.51 | 41 |
| 5 | 37/0.40 | 0.35 | 0.45 | 3.88±0.20 | 4.84 | 4.57 | 55 |
| 6 | 37/0.45 49/0.39 | 0.42 | 0.52 | 4.08±0.10 4.50±0.20 | 3.35 3.25 | 3.05 3.05 | 60 |
| 8 | 133/0.29 | 0.45 | 0.55 | 5.03±0.10 | 2.3 | 2.16 | 90 |
